Estate view

Warning

This feature is under license: see License.

The scorecard of a project answers "how is this project delivering?". The estate view asks it of every project of an estate at once — their readings side by side, against the targets of the estate — and answers a second question the security findings raise: "which of these projects are exposed to this CVE?".

Scorecards

Scorecards, in the Information group of the user menu, lists the estates:

  • the name, which opens the estate page, and the description,
  • the labels,
  • the marker,
  • the number of projects the estate selects.

There is no estate of all the projects: the readings of a project on its own are on its project page. The estates themselves are managed on the estates page.

The estate page

The page of an estate, at /extension/scorecard/estate/<name>, says what the estate is — its description, its marker and its labels — and has two tabs: Readings, the default one, and Findings fan-out.

The address of the page keeps the tab, the finding and the text searched, so that a fan-out or a search is shared by its link: /extension/scorecard/estate/<name>?tab=fanout&finding=CVE-2024-38816 opens the fan-out of CVE-2024-38816, ?tab=fanout&search=cve-2024 the findings whose external ID contains cve-2024, and a reload lands on the same page.

Readings

One row per project of the estate — among the projects you can see — and one column per reading of the catalogue, in its order. The heading of a column gives the target the estate sets for the reading, if any, and an ⓘ which says what the reading measures — up to the marker of the estate — and its target in words: Target of this estate: 2d or less — met at or under it, missed above, or that the estate sets none, the values being shown and not judged. The ⓘ of the security maturity lists its four rungs, the target one marked, and words Covered in the terms of the estate: the kinds of scan it expects and its freshness. An ⓘ opens on hover and on keyboard focus, and never sorts the column.

The readings read as a heatmap: each cell is a block of the same size, the latest daily reading of the project in the set of the estate, filled with the colour of its judgement — so that the projects which struggle, and on what, show before any value is read:

  • Met, green with a check, or Missed, orange with a cross, when the estate judges the reading — the colour never stands alone;
  • neutral, a grey fill, when the reading is not judged: the value alone when the estate sets no target for the reading, No failure for a time to restore with nothing to restore in the window, and No target set for overdue findings with no remediation target to judge them against;
  • Unknown, a dashed outline with a question mark and no fill, so that it never looks judged, when the reading could not be taken;
  • a dash when the readings of the project have not been computed yet.

A cell gives its value in short — the security maturity reads its rung, 2 · Covered — and its hover, or its keyboard focus, the project, the reading, its full value and the target of the estate. The hover of an unknown or neutral reading gives its reason too, and the one of a security maturity what its rung means. The line under the table names each judgement with its icon and its swatch.

The Summary column, on the right, sums each project up: a thin bar of its readings by judgement — missed, met, neutral, unknown — and how many of its judged readings are met, 3 of 5 met, the neutral and unknown readings not being judged. The bar spells its counts out to a screen reader.

The All projects row, at the top, rolls each reading up over the projects: the median of the values of the projects which have one, above the same thin bar of the projects by judgement, and their counts in one line: the mark of each judgement and its number, the zeros left out, in words on hover — 1 missed · 2 met. The neutral readings — a value with no target, No failure, No target set — are neither unknown nor part of the median, and the projects not computed yet are counted nowhere. A median of rungs or of counts may fall between two of them, and keeps its half: Median 1.5. The ⓘ next to All projects says what the row counts.

The worst projects come first: by default, the projects are sorted by their number of missed readings, the most first, then by name. A click on the heading of the Summary column turns this order around; a click on the heading of a reading sorts the projects by its value, the projects with no value last whatever the order, and one on Project by name. The name of a project, fixed on the left, opens its scorecard page on the set of the estate, where each reading explains its value.

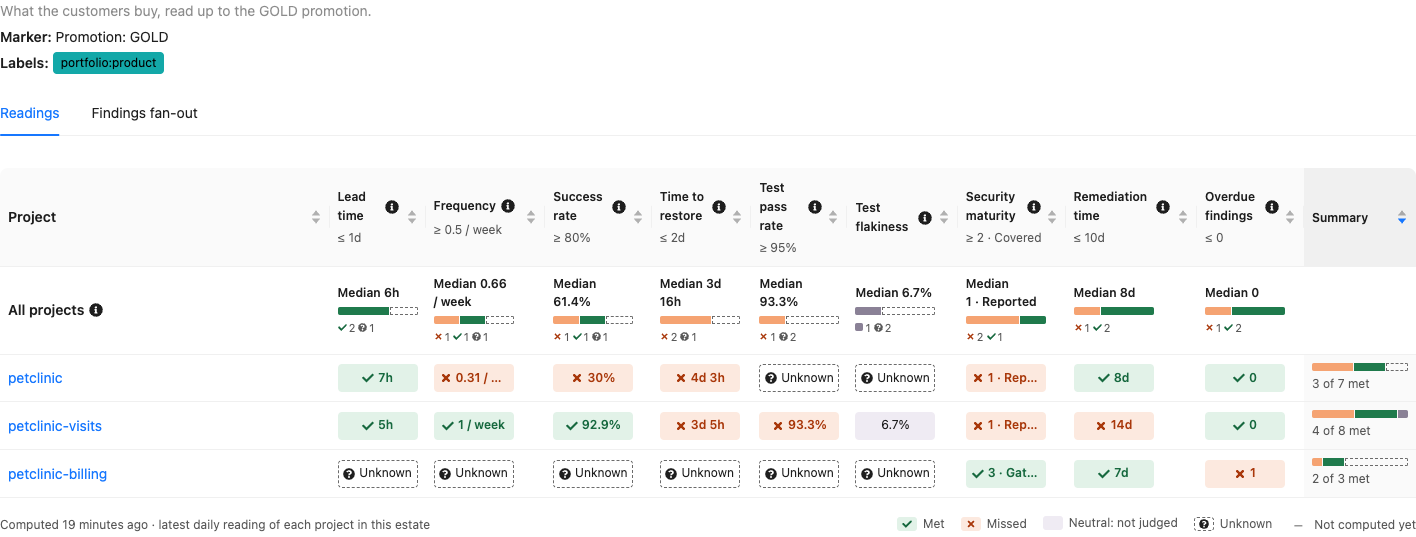

The readings of the projects of an estate

Above, the projects of the demo's Demo products estate, the worst first: petclinic and petclinic-visits each miss four targets, petclinic-billing one. petclinic-billing is gating its security scans and fixes its findings within the target, but has a HIGH finding open for longer than the estate allows, while petclinic and petclinic-visits only scan their dependencies where the estate expects their code to be scanned too. petclinic-visits requires its dependency scan for its SILVER promotion, which is gating as well, but each rung of the maturity needs the ones below it: not covered here, it reads 1 · Reported — and 3 · Gating in the Demo production estate, which expects a dependency scan only.

A switch showing the measured readings only appears once a project of the estate holds an ESTIMATED reading — which Yontrack 6 never produces, so it is not shown.

Findings fan-out

The Findings fan-out tab follows one security finding over the projects of the estate. Only the projects you can see, and whose findings you are granted the view of (ProjectFindingsView), are looked into.

The most widespread findings

Until a finding is searched, the tab answers "which finding hurts the most projects of this estate?": it lists the findings open in at least one of its projects, one row per external ID, by the number of projects of the estate in which they are open, then by severity — the highest a project reported it with — then by external ID. Each row gives:

  • the external ID and the title of the finding;
  • its severity;
  • the number of projects in which it is open, accepted and resolved: Open in 3 · accepted in 1 · resolved in 0 — each project counted once, by its most exposed finding, and the state of the finding in a project rolled up from the branches which count only, see Project roll-up;
  • when it was first seen, in any of these projects.

The list stops at the 20 most widespread findings. A click on a row opens the fan-out of its finding; All open findings goes back to the list.

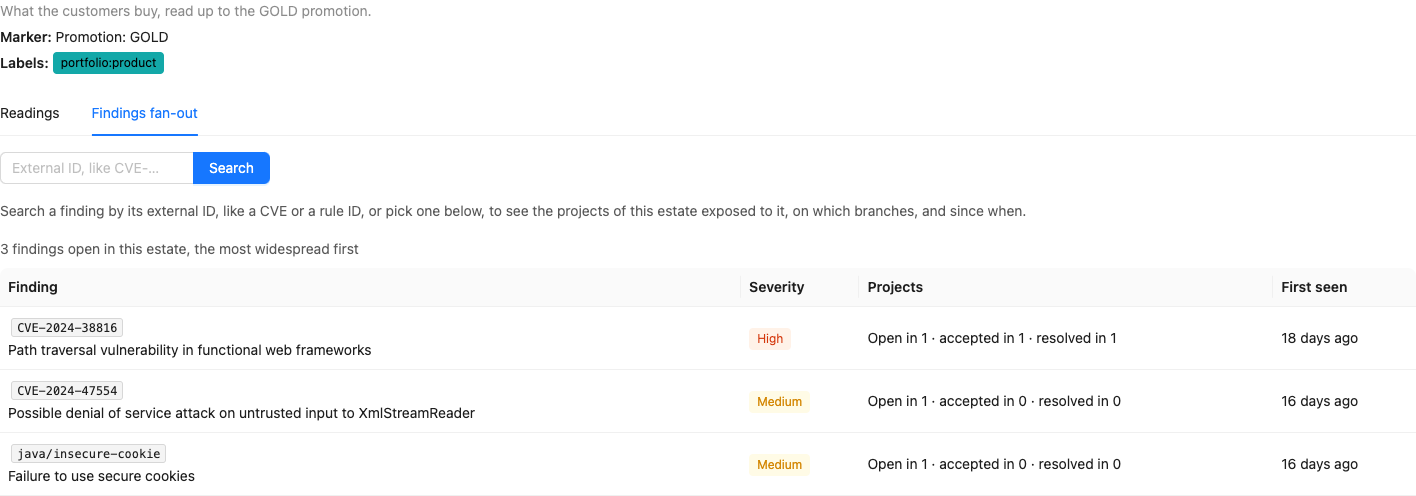

The most widespread findings of an estate

Above, the findings open in the demo's Demo products estate: each is open in one project only, so the HIGH comes first — CVE-2024-38816, also accepted in a second project and resolved in a third.

Searching a finding

The search box looks for the findings whose external ID — a CVE, a rule ID — contains the text typed, ignoring case: 38816, cve-2024 or csrf work as well as the whole external ID. The findings found may be open, accepted or resolved in the projects of the estate:

  • when only one external ID contains the text, its fan-out opens right away;
  • else, they are listed as the most widespread findings are, and ranked the same way. The list stops at 20 findings, and then asks for more of the external ID. A click on a row opens the fan-out of its finding, from which Findings containing "…" goes back to the list;
  • when none does, the tab says so.

In the demo's Demo products estate, csrf opens the fan-out of java/spring-disabled-csrf-protection, and cve-2024 lists four findings.

The fan-out of a finding

The finding is given with its title and a link to its description, and a summary: 3 projects of this estate report CVE-2024-38816: exposed in 1, accepted in 1, resolved in 1 — each project counted once, by its most exposed finding.

Then one row per finding — a project has one per scanner and location — grouped by project, the projects where the finding is open first, then the ones where it is accepted, then the ones where it is resolved:

  • its state in the project — open, accepted or resolved, see Project roll-up;
  • its severity, the highest it was reported with;
  • its location, with the scanner and the kind of scan, which opens the finding page;
  • Exposed on: the branches exposing it, each since the start of its exposure, and accepted until the expiry of its acceptance — or accepted without expiry. A branch where the finding is resolved is not listed; a finding resolved in the project reads Resolved and its date; a branch which does not count toward the state of the project — outside the branch model of the project, or disabled, see Project roll-up — is still listed, greyed with a dashed border, after the branches which count, and says why on hover and on keyboard focus: Outside the branch model: does not count toward the project's state. The state of the project and the summary are the ones of the branches which count, so that a project may read Resolved while it lists such a branch. A project without SCM has no branch model: all its branches count;
  • when it was first seen.

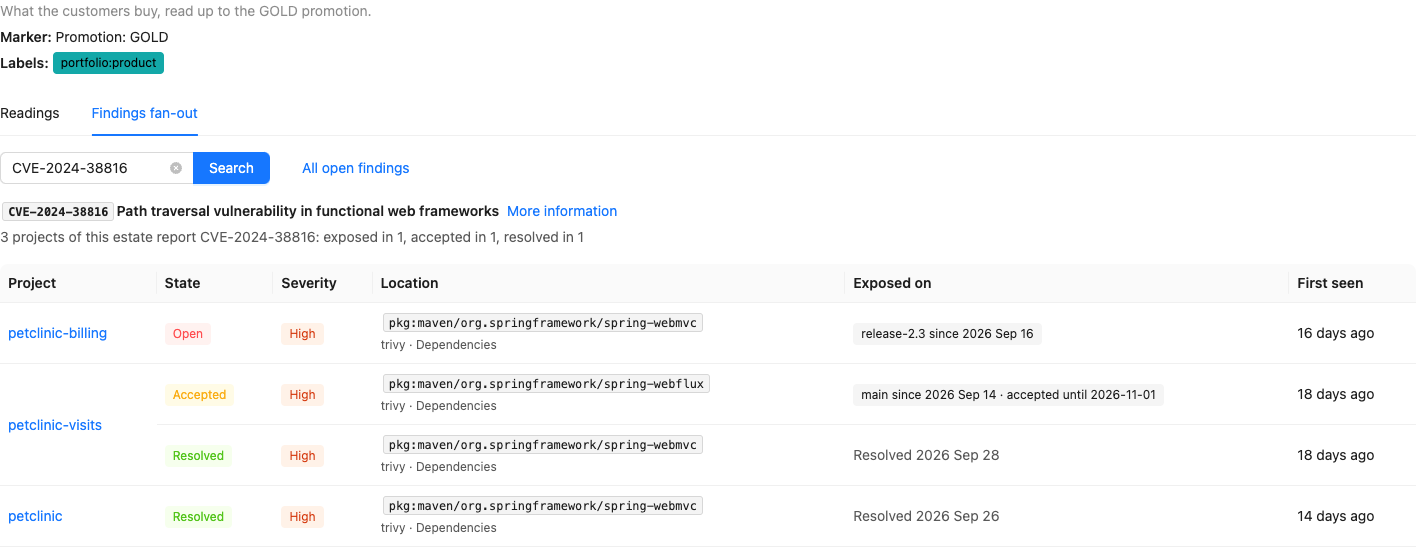

The findings fan-out of an estate

Above, the demo's CVE-2024-38816, opened from its link ?tab=fanout&finding=CVE-2024-38816: still exposed on the release-2.3 branch of petclinic-billing — it was fixed on main — in petclinic-visits, accepted on spring-webflux and resolved on spring-webmvc, and resolved in petclinic as a whole.

License

The estate view needs the Delivery scorecard feature (extension.scorecard) of the license, like the estates. Without it, the Scorecards entry is not in the user menu.

The estate view is on the desktop UI only: the mobile UI does not show it.

API

In GraphQL, Estate.projectSets gives the set of the estate of each of its projects — the readings the estate page shows — Estate.rankedFindings(size) the findings open in its projects, the most widespread first, Estate.searchedFindings(text, size) the findings whose external ID contains a text, ranked the same way, and Estate.findings(externalId) the findings of an external ID among its projects:

{
  estate(name: "Demo products") {
    projectSets {
      project { name }
      readings { key value basis unknownReason target targetMet }
    }
    rankedFindings(size: 10) {
      externalId
      title
      severity
      openProjects
      acceptedProjects
      resolvedProjects
      firstSeen
    }
    searchedFindings(text: "cve-2024", size: 10) {
      externalId
      openProjects
      acceptedProjects
      resolvedProjects
    }
    findings(externalId: "CVE-2024-38816") {
      project { name }
      location
      state
      maxSeverity
      firstSeen
      resolvedAt
      exposures { branch { name } since state counts acceptanceExpiresAt }
    }
  }
}

rankedFindings returns 20 findings unless size says otherwise, and never more than 100: the ranking is computed by the database over all the findings of the estate, and only its top is returned. searchedFindings is bounded the same way; its text is matched ignoring case, its % and _ matching themselves, and a blank one finds nothing. findings(externalId) takes the whole external ID, as stored.

counts says whether the branch of an exposure counts toward the state of the finding in its project — the state of the finding is rolled up from these branches only.
