Yontrack model

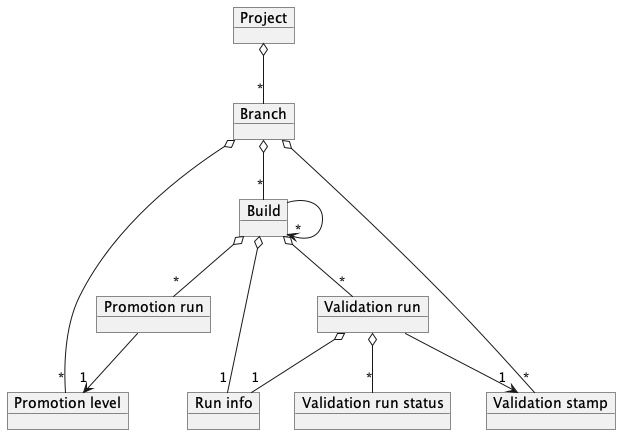

At the core, Yontrack collects information using an information model composed of the following entities:

• projects
• branches
• branches

Branches are configured with a list of validation stamps and promotions levels that builds can be associated with validation runs and promotions.

Finally, each entity in Yontrack can be associated with properties, which enrich the model with additional information.

Projects

Projects are at the root of the model hierarchy of Yontrack. They can be linked to each other (typically by links between builds).

In most cases, a project is linked to a SCM repository. But there are situations where creating a project independently of a repository is useful.

Projects can be tagged with labels, to organise them across the hierarchy and to filter the project lists.

Branches

One project can have several branches. They are usually linked to an actual SCM branch.

Builds

One build represents ... one build in a given branch. These builds are typically linked to an actual build (or workflow run, or pipeline execution, etc.) in a CI system. Depending on your setup, relaunching a build in your CI can lead to a unique or several builds in Yontrack.

A build would be associated with a commit in the SCM repository.

Links between builds are used to define the dependency between builds, across branches, across projects.

Validation stamps

When a build is being built by the CI engine, it is tested, scanned, probed, deployed, etc. This can happen in the same pipeline (or workflow run, etc.) or in several pipelines, which can be run asynchronously, nightly, etc.

These pipelines represent different quality probes on a given build. We call them validation stamps in Yontrack, because they are like actual stamps we would put on a given package, the build.

The validation stamps can be typed but not necessarily. For example, we can wish to represent a validation as a test summary, with the number of failed tests, skipped tests, passed tests, etc.

Evidence from non-agents only

Note

This restriction is under license, as the feature extension.agents ("Agent governance"). See Licensing.

By default, a registered agent records evidence like anybody else: its validation runs count the same as a person's or a pipeline's. Some stamps are where a number must not come from an agent — a human review, a performance measure, a sign-off. Agents produce configuration and rules, never numbers: an agent may write the scan, the test, the check, but the result which gates a build should come from the pipeline which runs it, or from a person.

With the Evidence from non-agents only property on a validation stamp, when the actor is an agent — the agent itself, or Yontrack acting on its behalf — both are refused:

• creating a validation run on the stamp, whatever the way: the createValidationRun* and validateBuildWith* mutations, the REST API, the GitHub ingestion, a notification;
• changing the status of one of its runs, like FAILED to EXPLAINED;
• changing the data of one of its runs, as the GitHub ingestion does when it validates a build again with the same status.

The refusal names the stamp:

evidence on REVIEW must come from a non-agent actor

The run is refused, never recorded and then ignored: a run on the record always counts. A person, a pipeline and Yontrack itself acting for a person are not concerned. The property is part of the stamp's configuration, which the agent policy never lets an agent change.

Set it:

• on the validation stamp page, through its properties;
• through the API, with the setValidationStampNonAgentEvidenceProperty(ById) mutation, or as code with the net.nemerosa.ontrack.extension.agents.evidence.NonAgentEvidencePropertyType property.

It cannot be set in the CI configuration nor in the CasC, which have no properties for the validation stamps.

Without the license, the property is kept and stays visible, with a notice, but does nothing: agents record evidence on the stamp like anybody else. It applies again as soon as the license allows it.

Promotion levels

While validation stamps are linked to a specific kind of check, test, scan result, etc., promotion levels are used to talk more generally about the quality of a given build.

They can typically group several validation stamps together, rely on other promotion levels. They can also be granted independently.

Promotion level names can be anything, but you have to agree at your organization level on their meanings. They will often be used to talk about quality throughout all your projects. Something often used is to use abstract names, like medal names, like gold, silver, bronze, etc. But again, this is up to you.

Promotion levels can have configurable fields that users must fill in when promoting a build.

Agents admitted

A registered agent may promote a build only to a promotion level which admits agents, and only if its owner may promote. Without it, the promotion is refused with a message saying so:

agent claude-code-ci[agent] may not promote to GOLD: the promotion level does not admit agents (agent policy)

A promotion level admits agents when it has the Agents admitted property. Set it:

• on the promotion level page, through its properties;
• in the CI configuration, with agents: true on the promotion;
• through the API, with the setPromotionLevelAgentsAdmittedProperty(ById) mutation, or as code with the net.nemerosa.ontrack.extension.general.AgentsAdmittedPropertyType property.

Auto-promotion is not concerned: when an agent records the validations which promote a build automatically, the promotion is granted by Yontrack itself, on behalf of the agent, and the auto-promotion rules of the level are the gate.

Assisted builds require

Note

This condition is under license, as the feature extension.agents ("Agent governance"). See Licensing.

A promotion level can require more of an assisted build — one whose commits were written with coding agents — than of the others: with the Assisted builds require property, it lists validation stamps of its branch which an assisted build must pass before being promoted to the level. Typically, a human review or a security scan.

When the build is assisted, and one of the listed stamps has not passed — its last run is not PASSED nor FIXED, or it has no run — the promotion is refused, naming the first such stamp:

Assisted build: REVIEW must pass first.

The rule fails closed: a build whose assisted change is not computed yet, or is UNKNOWN — no SCM, no previous build, an SCM error — counts as assisted. A race with the computation, which runs in the background after the build is created, or a missing SCM, never bypasses the review. A listed stamp which does not exist on the branch cannot pass either. A build known not to be assisted is not concerned.

The condition applies to every promotion: by a person, by the API, by an agent, by auto-promotion — which waits until the stamps have passed — and by workflows. The readiness of the build lists every missing stamp, as a CHECK named Assisted builds require.

Set it:

• on the promotion level page, through its properties;
• through the API, with the setPromotionLevelAssistedBuildsRequireProperty(ById) mutation and its validationStamps list, or as code with the net.nemerosa.ontrack.extension.agents.assisted.AssistedBuildsRequirePropertyType property.

Without the license, the property is kept and stays visible, with a notice, but does nothing: assisted builds are promoted as any other. It applies again as soon as the license allows it.

Validation runs

When linked to a build, a validation stamp can be passed, failed, in warning, etc. It has a complete lifecycle linked to a given build.

This is called a validation run. In some cases, a validation will be run several times for a given validation stamp and build: several validation runs can be associated with a given validation stamp and build.

If the associated validation stamp is typed, the validation run will need to also contain some data, of the same type as the validation stamp.

Validation life-cycle

A run in WARNING or FAILED can be set to FIXED directly. Since FIXED counts as passed, this single change can make the build eligible for a promotion, including an automatic one.

In the builds grid of a branch page, and in the "Validations" table of a build page, clicking the status of a validation run opens a small popover:

• one button per status the run can move to, FIXED first when it is one of them — one click applies it;
• With comment… to pick a status and give it a description;
• History… to display all the runs of this validation stamp for this build, and their statuses.

The popover reads the current status of the run when it opens. Users who are not allowed to change the status of validation runs only see History….

Promotions

A promotion level can be granted to a build. This is called a promotion or promotion run. This can happen several times for a given promotion level and a given build.

A promotion is either granted or not granted. When promotion level fields are configured, field values can be associated with each promotion run.

Readiness

The readiness of a build says what it still lacks to reach a promotion level of its branch, or to be deployed in a slot of its project. It answers the question "is this build ready for GOLD, or for production, and what exactly is missing?" in one read, with every missing condition listed — not only the first one.

It is computed when it is read, from the current state of the build and the current configuration of the promotion level or of the slot. Reading it changes nothing: it never promotes, deploys or records anything. It needs nothing more than to see the build's project.

For a promotion level:

• a build which already has the promotion level is ready, with nothing missing;
• with an auto promotion, each required validation stamp which has not passed is missing, with the status of its last run or Not validated, and so is each required promotion level the build has not reached — the same conditions as the auto promotion itself;
• each promotion check which would refuse the promotion is missing — the previous promotion condition, each promotion dependency which is not granted, and each stamp an assisted build has not passed (Assisted builds require);
• a promotion level without auto promotion is granted by a person: that is missing too, and the build is not ready until someone promotes it, even when nothing else is missing.

For a slot, every admission rule which makes the build not eligible, or not deployable yet, is missing with its reason. A manual approval is missing until it is given on a deployment of the build.

When an agent reads the readiness, a promotion level or a slot which does not admit agents is missing too, as an AGENT_POLICY item naming the owner of the agent to ask. The other items are still listed: the agent learns everything that is missing in one call. A person never gets this item.

Each missing item has a kind, a name and a message:

Kind	Name	What it means
VALIDATION	validation stamp	a stamp required by the auto promotion has not passed
PROMOTION	promotion level	a promotion required by the auto promotion is not granted
CHECK	promotion check	a promotion check would refuse the promotion
ADMISSION_RULE	admission rule of the slot	the rule refuses the build, or does not let it be deployed yet
MANUAL	promotion level, or rule	a person must act: promote the build, or approve the deployment
AGENT_POLICY	promotion level, or slot	the agent reading the readiness is not admitted on the target

On the build page

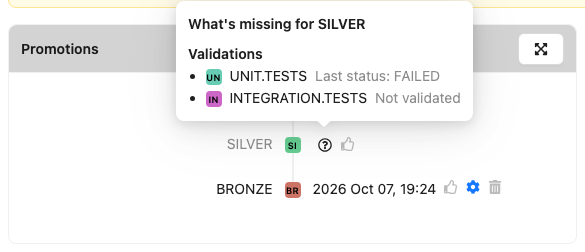

On the page of a build, each promotion level the build has not reached yet has a What's missing button, beside it in the Promotions section. So has each slot the build has not reached yet, beside its chip in the Environments section. The button opens a popover with the readiness of the build for that promotion level or slot, grouped by kind: a missing validation links to its validation stamp, a missing promotion shows the required promotion level, a failing promotion check gives its reason, and a promotion level without auto promotion says that it is promoted by a person.

When nothing is missing, the popover says Ready and, for a promotion level, offers to promote the build if you are allowed to. The readiness is read when the popover opens, and read again while it is open whenever the build is validated or promoted from the page.

Reading it

The GraphQL API exposes it as the readiness field of Build, given exactly one of promotionLevel (a name on the build's branch) and slotId:

{
  build(id: 123) {
    readiness(promotionLevel: "GOLD") {
      ready
      missing {
        kind
        name
        message
      }
    }
  }
}

The KDSL offers build.readiness(promotionLevel = "GOLD") and build.readiness(slot = slot).

How agents use it

Readiness is the question an agent asks before it acts on a delivery: before proposing a merge, starting a deployment or asking for a promotion, it reads what is missing rather than guessing from the builds and the runs. The kinds tell it what it can do about each item:

• VALIDATION — produce the evidence: run the check, and record it as a validation run;
• PROMOTION and CHECK — the build must first reach another promotion level;
• ADMISSION_RULE — the build does not qualify for the slot yet, or not at all;
• MANUAL — stop and ask a person: an agent never stands in for the person who promotes or approves;
• AGENT_POLICY — the target does not admit agents: stop and ask the owner named in the message.

An agent reads which promotion levels and slots admit it, for a whole project, in its own policy.

The Yontrack MCP server and the Yontrack CLI read the same field.

Properties

Properties are heavily used in Yontrack to enrich the model with additional information. They can be attached to any entity in the model.

For example, in this documentation, we'll often talk about the "release label" of a build. This is actually represented by a property attached to the build.

Properties can be set by users using the UI, but more often than not, they are set automatically by the CI engine.

A property whose stored value can no longer be read — for example, because it points to a configuration which has been deleted, or which was stored by an older version of Yontrack — is still listed in the details of its entity, with the reason why it cannot be read. A user allowed to edit the property can then set a new value, which replaces the unreadable one, or delete it. In the GraphQL API, the error field of such a property gives the reason, its value being null.

Note

The list of all existing properties is available in the reference.

Validation stamp types

Test summary

Value:

• passed - Count of passed tests
• skipped - Count of skipped/ignored tests
• failed - Count of failed tests

Configuration:

• warningIfSkipped - If set to true, the status is set to warning if there is at least one skipped test.
• failWhenNoResults - If set to true, the status is set to failure if there is are no test at all.

CHML

This type means Critical / High / Medium / Low. It is used to represent the results of some scans (security, code quality, etc.).

Value:

• CRITICAL - number of critical severity issues
• HIGH - number of high severity issues
• MEDIUM - number of medium severity issues
• LOW - number of low severity issues

Configuration:

• warningLevel:
  • level: CRITICAL / HIGH / MEDIUM / LOW
  • value: when the number of issues in this level is above this threshold, the validation stamp is in warning
• failedLevel:
  • level: CRITICAL / HIGH / MEDIUM / LOW
  • value: when the number of issues in this level is above this threshold, the validation stamp is failed
• warningPassesAutoPromotion: optional, false by default. When true, a run whose last status is WARNING counts as passed for the auto promotion — and only for it.

Security findings

The findings of a security scan, sent as a report rather than as counts. Yontrack keeps the findings themselves and follows them from build to build — see Security findings.

Value: the number of findings by severity, as for CHML, plus the number of UNKNOWN and of accepted findings.

Configuration: the one of CHML. The accepted and UNKNOWN findings never trip a threshold.

Percentage

Value: an integer between 0 and 100.

Configuration:

• warningThreshold: integer between 0 and 100. If the value is below this threshold, the stamp is in warning.
• failureThreshold: integer between 0 and 100. If the value is below this threshold, the stamp is is failed.
• okIfGreater: boolean. If true, the stamp is OK when above the thresholds

Number

Value: any number

Configuration:

• warningThreshold: integer. If the value is below this threshold, the stamp is in warning.
• failureThreshold: integer. If the value is below this threshold, the stamp is is failed.
• okIfGreater: boolean. If true, the stamp is OK when above the thresholds

Metrics

This type is used collect arbitrary metrics, the associated of names with measurements.

Value: a map of measurements (name --> double)

Configuration: none

Run info

Both builds and validation runs can have some run information attached to them.

This is a object which contains the following information about the run (build or validation):

• sourceType - Type of source (like "jenkins")
• sourceUri - URI to the source of the run (like the URL to a Jenkins job)
• triggerType - Type of trigger (like "scm" or "user")
• triggerData - Data associated with the trigger (like a user ID or a commit)
• runTime - Time of the run (in seconds)
