Changelogs

Yontrack helps you generate changelogs for many situations:

from build to build
across branches
from a last promotion etc.

These changes logs can be simple, done at branch level level only between two builds, or recursive down the dependencies of a given project.

Changelogs contain a list of issues and/or commits, they can also be based on conventional commits.

Changelogs can be rendered as plain text, Markdown, HTML and other formats are available.

How to generate a changelog

Using the UI

In the UI, a changelog can be generated from the branch page:

select the boundaries of the changelog
click on Change log

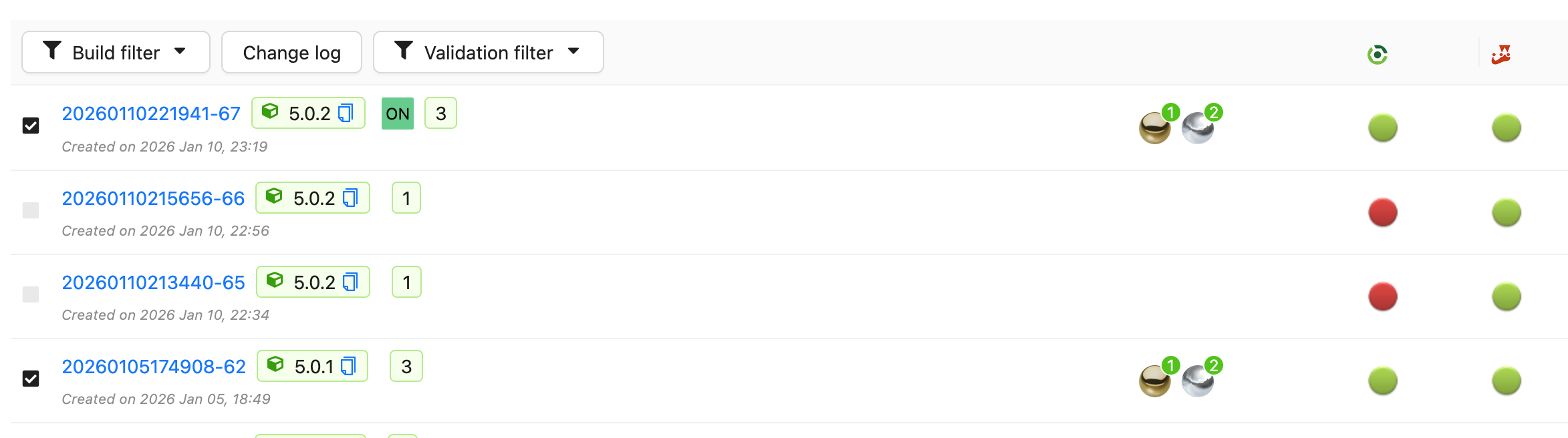

Branch changelog

The changelog page displays several sections.

details about the changelog boundaries:

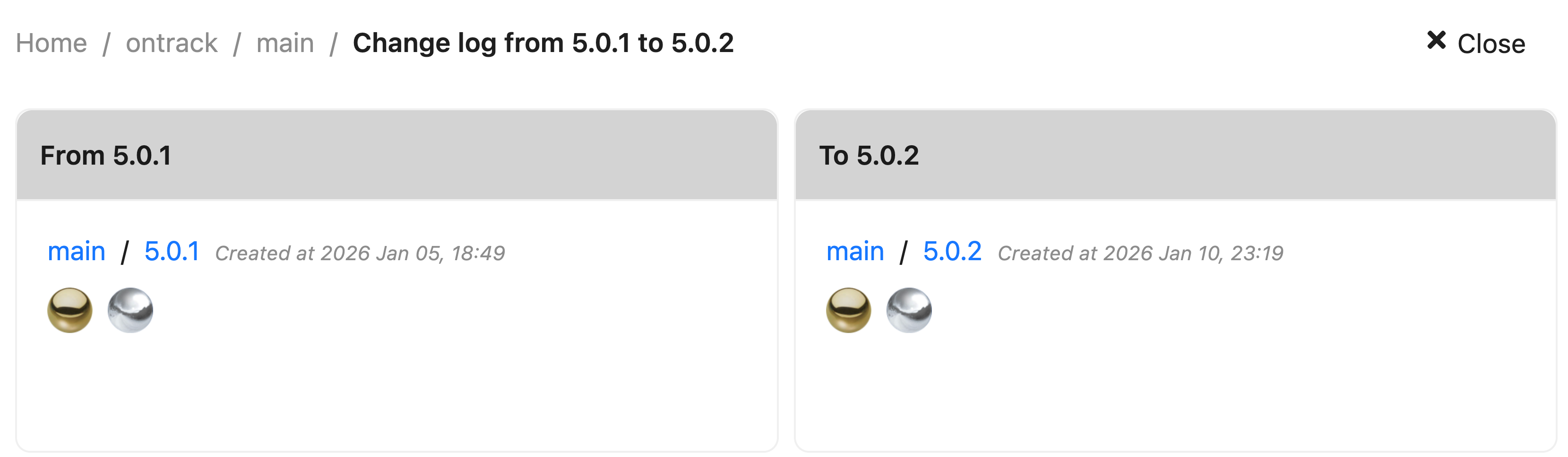

Changelog boundaries

list of changes in known dependencies:

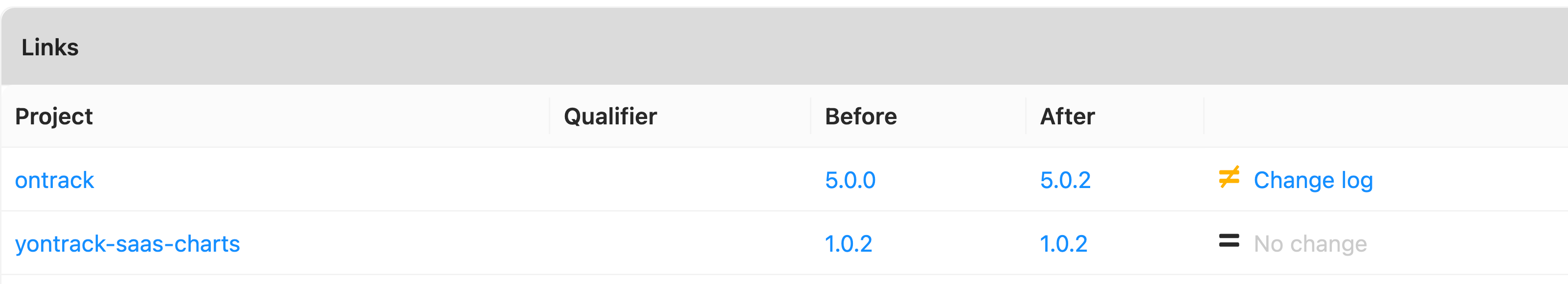

Changelog links

If a dependency has changes, you can drilldown into its own changelog.

a list of commits for this changelog:

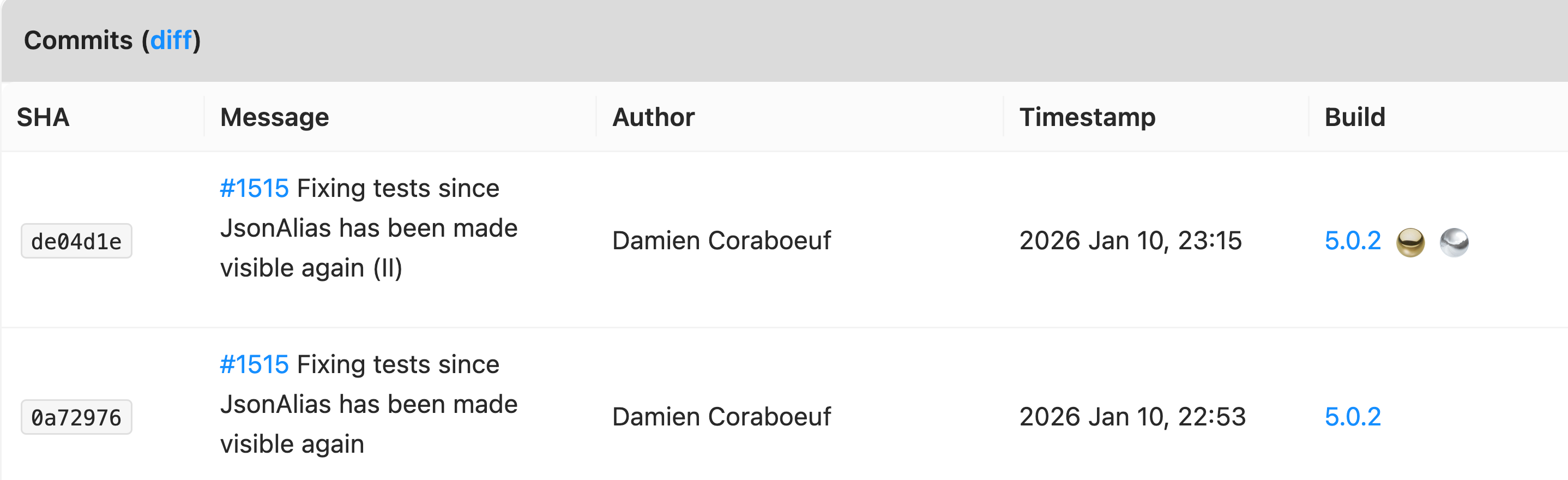

Changelog commits

The diff links allows to drilldown into the actual diff of the commits using the associated SCM.

a list of issues for this changelog:

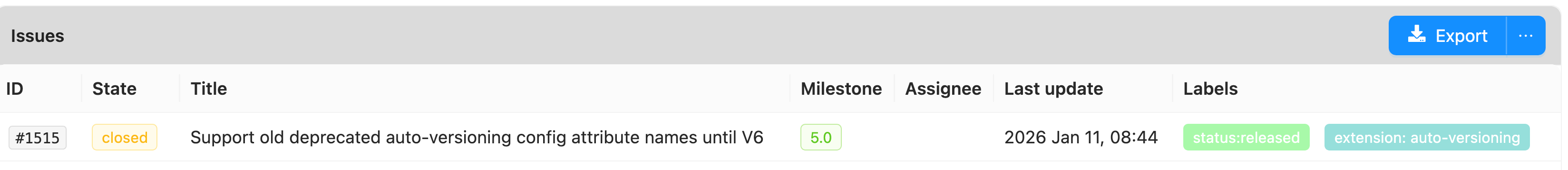

Changelog issues

The Export button allows exporting the changelog in different formats:

HTML
Jira
Markdown
Slack
Text

Other options are also available to group the issues together.

When you finally click Export, the changelog is shown in a modal box and can be copied.

Note

See also the templating for more advanced usages

Reading the changelog as a semantic changelog

The same changelog can be read in two ways, chosen from the View menu in the page's command bar:

Classic — the sections described above: boundaries, dependencies, commits and issues. This is what the page shows unless you ask for something else.
Semantic — the commits grouped into sections by their conventional-commit type, exactly as the templating renderer produces them for a notification. This is the form you paste into release notes, a pull request description or Jira.

The semantic view replaces the issues section with the rendered changelog, shown as raw text with a Copy button — including for HTML, where the source is what you get, because the point of choosing a format is to paste the result somewhere else. The boundaries and the dependency changes stay: they answer which two builds this is about, whatever way you read it.

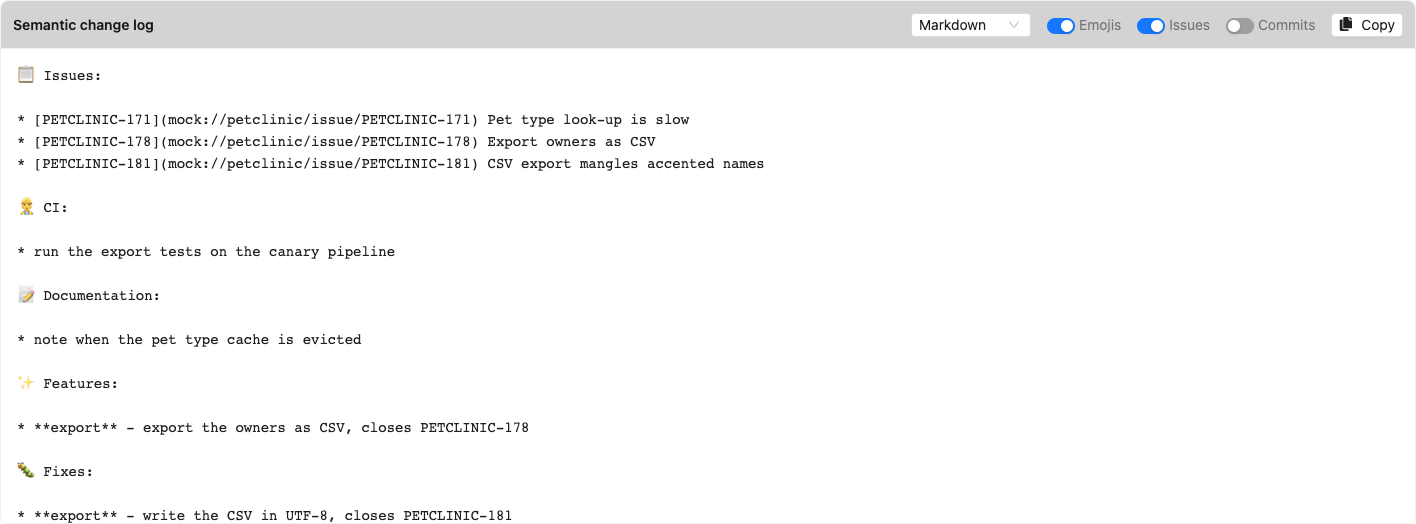

Semantic changelog

The classic view is the one shown in the sections above — the same changelog, read as boundaries, dependencies, commits and issues.

Four options sit in the panel's own header:

Option	Default	Meaning
Format	`markdown`	The renderer: `text`, `markdown`, `html`, `jira` or `slack`
Emojis	on	Emojis in the section titles
Issues	on	An issues section inside the rendered text — the semantic view has no issues panel
Commits	off	Shows the classic commits section beside the rendered text

The view and its options are remembered in your user preferences, so the changelog page opens the way you last read it, on any machine.

They are also carried in the URL, so a link you share reproduces exactly what you were reading:

/extension/scm/changelog?from=1146&to=1149&view=semantic&format=jira&emojis=true&issues=true&commits=false

The parameters are written only when you change something. A changelog link with no view= parameter keeps meaning "however you like to read it" for whoever opens it.

Note

The semantic changelog only shows commits whose subject carries a conventional-commit type, such as feat(api): search owners by phone number. On a project whose commit messages do not follow that convention, nothing survives that filter: with Issues off the view says so rather than showing an empty panel, and with Issues on you get the issues section and no type sections at all. Either way, turn Commits on to read the commits as they are. See Semantic changelogs for the same rendering used from a template.

Using the UI across branches

You can generate a changelog between two builds on different branches.

Navigate to the project and select Search builds.

Using the filter options, select the builds you want to compare, click on the icon to select the boundaries:

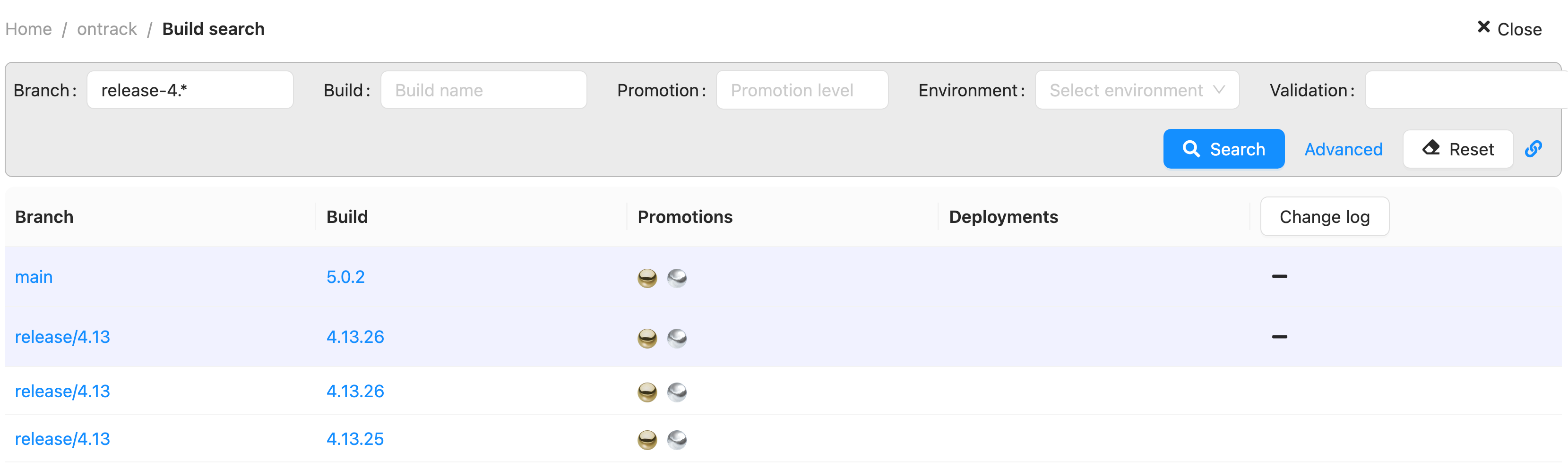

Changelog across branches

Once you have selected two boundaries, you can click on the Change log button. You'll get the same changelog page as for the branch changelog.

Note

You cannot generate changelogs between different projects.

Using a permalink

The changelog page can be linked to directly, which is useful for release notes, chat messages or CI jobs.

Using the IDs of the two builds:

/extension/scm/changelog?from=1146&to=1149

Using the name of the project and the names of the two builds, which can be written without knowing any ID:

/extension/scm/my-project/changelog?from=1.2.0&to=1.3.0

In this second form, each boundary is looked for using the display name of the builds first, and then using their name.

The boundaries can be given in any order: the changelog is always computed from the oldest build to the most recent one.

If the project, one of the branches or one of the builds cannot be found, the reason is displayed on the page.

Selecting the branch of a boundary

Build names are unique inside a branch, not inside a project. When several builds of the project match a boundary, the most recent one is used.

The branch of each boundary can be given to remove this ambiguity:

/extension/scm/my-project/changelog?from=1.2.0&fromBranch=release-1.2&to=1.3.0&toBranch=release-1.3

Warning

When a branch is given, the name of the build is looked for in this branch only, but its display name is still looked for in the whole project. A boundary given as a display name can therefore be resolved into a build which is not on the branch which has been given.

Giving a branch also changes the order of the matching: without a branch, the display name is matched first, and then the build name. With a branch, the build name is matched first, and then the display name.

Using templating

The most powerful way to generate changelogs is to use templating.

Several template sources are available:

Build.changelog - changelog between this build and another
PromotionRun.changelog - changelog between a promoted build and the previous promotion
PromotionRun.semanticChangelog - semantic changelog between a promoted build and the previous promotion

For example, to generate a mail on a promotion containing a semantic changelog, you could use the following template:

${promotionRun.semanticChangelog?issues=true&emojis=true}

In this example, the changelog not only contains the semantic changelog, but also the list of issues if there are any. Each section (features, fixes, etc.) is also decorated with the corresponding emoji.

Using the API

The classic and semantic changelogs can also be generated using the API:

query {
    scmChangeLog(from: 1146, to: 1149) {
        # Classic changelog
        render(config: {commitsOption: ALWAYS}, renderer: "html")
        # Semantic changelog
        semantic(config: {emojis: true}, renderer: "markdown")
    }
}

Note

Using the API directly may be a way to render more complex changelogs on your side.

Using the clients

Using the Yontrack CLI or the Jenkins pipeline library, you can generate changelogs.

Recursive changelogs

Both classic and semantic changelogs can be recursive.

The following options are available:

dependencies: comma-separated list of project links to follow one by one for a get deep change log. Each item in the list is either a project name, or a project name and qualifier separated by a colon (:)
allQualifiers: loop over all qualifiers for the last level of dependencies, including the default one. Qualifiers at dependencies take precedence
defaultQualifierFallback: if a qualifier has no previous link, uses the default qualifier (empty) qualifier

For example, using templating, you could generate the main changelog between two builds, and then the corresponding changelog for the library dependency:

${promotionRun.semanticChangelog?issues=true&emojis=true}

${promotionRun.semanticChangelog?issues=true&emojis=true&dependencies=library}

If the library project has a dependency on core, you can even generate a deeper changelog:

${promotionRun.semanticChangelog?issues=true&emojis=true}

${promotionRun.semanticChangelog?issues=true&emojis=true&dependencies=library}

${promotionRun.semanticChangelog?issues=true&emojis=true&dependencies=library,core}

Commit messages

Wherever a changelog renders a commit, it renders only the first line of its message - the subject - and truncates it at 100 characters, ellipsis included. Commit messages, in particular the ones written by coding agents, routinely run to dozens of lines, and a changelog is a list of subjects.

This applies to the changelog page, to the changelogs rendered through templating and the API, and to the description of a commit in the search results.

The full message is never lost: it is stored as-is, indexed in full by the search - so that looking for a phrase in the body of a commit still finds it - and displayed in full on the commit page, one click away from the changelog.

The maximum length can be changed for the changelogs rendered through templating or the API, using the commitsMaxLength option, common to classic and semantic changelogs:

${promotionRun.changelog?commitsOption=ALWAYS&commitsMaxLength=250}

Setting commitsMaxLength to 0 disables the truncation - the subject is then rendered in full, however long it is. It does not bring the body of the message back: only the first line is ever rendered in a changelog.

The length used on the changelog page and in the search results is not configurable.

Issues of a commit

The issues of a changelog are the ones its commits name. A commit names its issues in two places only:

its subject - the first line of its message;
its trailer lines - any line of the body which starts, in any case, with one of the keywords below, with or without a colon. The rest of that line is the value of the trailer.

Keywords
`close`, `closes`, `closed`
`fix`, `fixes`, `fixed`
`resolve`, `resolves`, `resolved`
`ref`, `refs`, `references`, `related`
`issue`, `issues`
`jira-ticket`

Every issue key found in the subject or in a trailer value is linked, so a trailer can name several issues:

#12 Search owners by phone number

The search used to ignore the phone numbers, see the discussion in #10.

Closes #12, #13
Refs: ABC-1 ABC-2
Jira-Ticket: ABC-3

This commit names #12, #13, ABC-1, ABC-2 and ABC-3. The rest of the body is prose, and is ignored: #10 above is mentioned, not worked on, and is not part of the changelog.

The rule is fixed and has no setting. It applies to the issues of a changelog, wherever it is rendered - the changelog page, the issue export, templating, the API and notifications - and to the issues the search finds in the commits of a project.

For GitHub and GitLab issues, a #123 is not an issue of the repository when it is part of a reference to another repository (owner/repo#123), of a URL, or of an HTML entity ('), or when it is directly followed by a letter or an underscore (#123abc).

Configuration of changelogs

Besides the recursivity options, the two types of changelogs have their own configuration.

Classic changelogs

These changelogs display the list of issues between two builds. Optionally, the commits can be displayed as well using the commitsOption parameter.

Option	Type	Default value	Description
empty	String	Empty	String to use to render an empty or non existent change log
title	Boolean	false	Include a title for the changelog
commitsOption	(1)	NONE	Option to display commits
commitsMaxLength	Int	100	Maximum length of a commit message, 0 to disable the truncation

(1) the possible values for commitsOption are:

NONE - Never rendering the commits (the default)
OPTIONAL - Only rendering the commits if no issue is present
ALWAYS - Always rendering the commits (additionally to the issues)

Semantic changelogs

The semantic changelog is based on the conventional Commits specification. The changelog page can be read this way too — see Reading the changelog as a semantic changelog; the options below are the ones available from a template, of which the page exposes issues and emojis.

Option	Type	Default value	Description
issues	Boolean	false	Must a section for changelog actual issues be present?
sections	List (1)	Empty	Mapping types to section titles
exclude	List (2)	Empty	Types to exclude from the changelog
emojis	Boolean	false	Use emojis in the section titles
commitsMaxLength	Int	100	Maximum length of a commit message, 0 to disable the truncation

(1) use the sections option to redefine the title of a given semantic type. For example, if you want to use Other for chore and Bugs for fix, you can use the following configuration:

${promotionRun.semanticChangelog?sections=chore=Other&sections=fix:Bugs}

(2) use the exclude option to exclude some semantic types from the changelog. For example, to skip the generation for the CI & Build types:

${promotionRun.semanticChangelog?exclude=ci&exclude=build}
